iVIS-200 Series

by | posted in: N-Machine Vision | 0

Intel® Atom™ E3845 x86-based Smart Camera Framework for Machine Vision and ITS

  • Intel® Atom™ E3845 quad-core 1.91 GHz processing power
  • Built-in GigE/USB3/USB2 camera interfaces
  • Patented DTIO technology for accurate trigger/strobe control
  • Built-in 500 mA constant current and 24 V constant voltage LED controller
  • 802.3at PoE+ PD and auxiliary DC dual power input
  • M12 connectors for water-proof design

    Product Hightlights

    x86-based Smart Camera Framework for Machine Vision and Intelligent Transportation System

    iVIS-200 presents a new concept of creating a smart camera. By integrating off-the-shelf GigE/USB3 camera into a x86-based processing unit, you can simply develop your smart camera using Windows-based or Linux-based commercial or open source vision software, which significantly expands the possibility and flexibility for a smart camera system. iVIS-200 is offered in several configurations for machine vision and intelligent transportation system applications.

    Built-in Constant Current and Constant Voltage LED Controller with DTIO Technology

    iVIS-200 incorporates LED illumination controller for directly driving the LED light. It supports both 500 mA max. adjustable constant current mode and 24 V constant voltage mode. PWM dimming control is also included to control the intensity of light. Combining Neousys’ DTIO, a MCU-based trigger control mechanism, iVIS-200 can respond to a trigger signal with LED strobe and camera trigger at a deterministic 10us timebase. You can have a highly integrated smart camera system that always captures the image with right illumination when object is in position!

    Compatible with Off-the-Shelf USB 3.0 and GigE Cameras

    iVIS-200 is designed to work with off-the-shelf USB3/GigE camera to offer more choices in camera resolution and frame rate. For your selected camera, you can find a corresponding iVIS-200 model to accommodate it. iVIS-210B is well fit for Basler Dart board camera and iVIS-211B is for Point Grey Chameleon3. iVIS-220B and iVIS-227B, on the other hand, can accommodate most cameras with cross section of 29mm x 29mm, via either USB 3.0 or GigE interface.

    iVIS-210 with Basler Dart

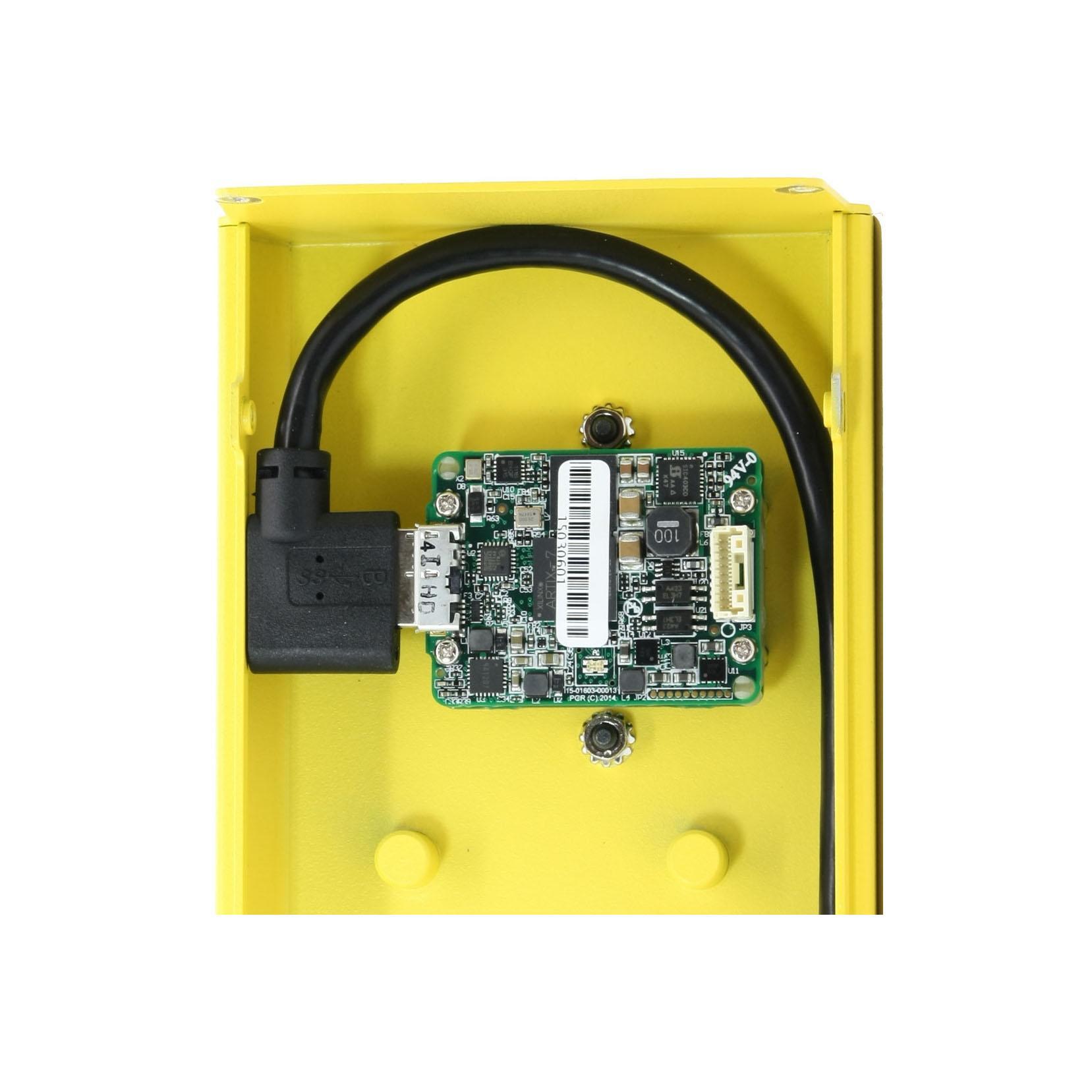

    iVIS-211 with Point Grey Chameleon3

    iVIS-220 with The Imaging Source DMK 23G618

    iVIS-200 Live Demo for Recognition System of Vehicle License Plates

    Neousys Technology iVIS-200 demo for Recognition System of Vehicle License Plates. The demonstration of one AC power source drives two computers,one switch, and five cameras all at once

    * The model names, trademarks and company names listed here belong to their respective owners and are for representation purposes only.

    ** Lens and cameras shown on the photos are for demonstration purposes only and are excluded in the iVIS-200 series barebone.

    Specification

    System Core
    Processor Intel® Atom™ Bay Trail-I E3845 Quad-core processor
    Graphics Integrated Intel® HD Graphics
    Memory 1x SO-DIMM socket for DDR3L-1333, up to 8GB

    On-board Camera Interface
    Ethernet 1x Gigabit Ethernet ports by Intel® I210
    USB 1x USB 3.0 port
    Trigger I/O 1-CH trigger-out for camera control

    Panel I/O Interface (M12 connectors)
    Ethernet 1x Gigabit Ethernet ports by Intel® I210
    Trigger I/O 2-CH isolated trigger input with
    1-CH isolated digital output for strobe control
    LED Illumination
    roller    		 1-CH LED Illumination driving output,
    supporting 24 VDC constant voltage mode or 500 mA
    max. adjustable constant current mode with 100 KHz,
    250 steps PWM dimming control
    COM 1x 3-wire RS-232

    Auxiliary I/O Interface (internal wafer connector)
    VGA 1x VGA port
    USB 1x USB 2.0 port

    Storage/Expansion Interface
    mSATA 1x half-size mSATA port
    Mini-PCIe 1x full-size mini-PCIe socket with SIM support
    (iVIS-220B/227B only)

    OS Support
    Windows Windows 7 32/64-bit, WES7
    Linux Ubuntu 14.04, OpenSuSE 13.1, Fedora 20

    Power supply
    PoE+ PD Support IEEE 802.3at PoE+
    (powered via Ethernet cable)
    Auxiliary DC-IN Support 12/24 VDC auxiliary power input when PoE+
    PSE is not available

    Mechanical
    Dimension 83mm(W) x 153mm(H) x 43mm(D) (iVIS-210B/211B)
    88mm(W) x 74mm(H) x 153mm(D) (iVIS-220B/227B)

    Environmental
    Operating -25°C ~ 60°C, 100% CPU loading */**
    Storage Temperature -40°C ~ 85°C
    Humidity 10%~90% , non-condensing
    Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, w/o
    add-on card, according to IEC60068-2-64)
    Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/
    SSD, w/o add-on card, according to IEC60068-2-27)
    EMC CE/FCC Class A, according to EN 55022 & EN 5502.
