Nuvis-5306RT

by | posted in: N-Machine Vision | 0

6th-Gen Intel® Skylake Vision Controller with Vision-Specific I/O, Real-time Control and GPU-Computing

  • Intel® 6th Gen Core™ i7/i5 65W/35W CPU, up to 32 GB DDR4
  • Integrated vision-specific I/O
    • 4-CH CC/CV lighting controller
    • 4-CH camera trigger outputs
    • 1-CH quadrature encoder input
    • 8-CH isolated DI and 8-CH isolated DO
  • Patented MCU-based, real-time I/O control by DTIO V2 and NuMCU
  • Built-in camera interfaces
    • 4-CH IEEE 802.3at Gigabit PoE+ ports
    • 4-CH USB 3.0 ports
  • Supports NVIDIA GTX 950/1050 for GPU-accelerated MV
  • Product Release Date: Q1’17

    Product Highlights

    Integrated Vision-Specific I/O

    Support all peripheral devices for machine vision applications

  • CC/CV lighting controller (1A/24V)
  • 12V camera trigger output
  • Quadrature encoder input
  • PWM output
  • Isolated DI/DO

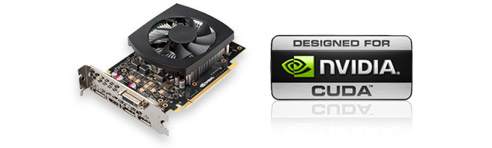

  • GPU-Accelerated Computer Vision

    Particularly designed for NVIDIA GTX 950/1050 GPU

  • 20x FLOPS v.s. CPU
  • Reliable 7/24 operation with 100% GPU loading

  • New era for machine vision

  • GPU-accelerated machine vision library
  • Deep-learning machine vision software

  • Nuvo-5306RT

    Versatile Camera Interfaces

    DTIO V2

  • Time/position-based trigger
  • Deterministic 10 us response latency

  • NuMCU

  • For user-defined MCU F/W
  • Develop MCU code using TI CCS
  • Develop MCU code using TI CCS

  • Versatile Camera Interfaces

    Integrated camera interface

  • 4x 802.3at PoE+ ports and 2x GigE ports
  • 4x UB3 ports with 1000 MB/s bandwidth

  • Expandable interface by Cassette

  • CameraLink
  • CoaXPress
  • 10G Ethernet

  • Live Demo

    Specification

    System Core
    Processor Supports 6th-Gen Intel® Core™ LGA1151 CPU
    – Intel® Core™ i7-6700
    (8M Cache,3.4/4.0 GHz, 65W TDP)
    – Intel® Core™ i5-6500
    (6M Cache, 3.2/3.6 GHz, 65W TDP)
    – Intel® Core™ i7-6700TE
    (8M Cache, 2.4/3.4 GHz, 35W TDP)
    – Intel® Core™ i5-6500TE
    (6M Cache, 2.3/3.3 GHz, 35W TDP)
    Chipset Intel® Q170 Platform Controller Hub
    Graphics Integrated Intel® HD Graphics 530
    Memory Up to 32 GB DDR4-2133 SDRAM
    by two SODIMM sockets
    AMT Supports AMT 11.0
    TPM Supports TPM 1.2

    Vision-Specific I/O Interface
    LED Lighting Controller 4-CH LED lighting controller output ,
    supporting
    – Constant current mode
    (up to 1 A per channel, 100 kHz dimming
    control)
    – Constant voltage mode
    (24 VDC, 100 kHz dimming control)
    Camera Trigger 4-CH camera trigger output
    (12 VDC output)
    Encoder Input 1-CH quadrature encoder input (A/B/Z)
    Isolated Digital Output 4-CH isolated high-speed digital output
    (<2 us transient time, for strobe/PWM)
    4-CH isolated high-current digital output
    (up to 500 mA rated current)
    Isolated Digital Input 8-CH isolated high-speed digital input
    (<2 us transient time)
    Real-time I/O Control Patented MCU-based real-time I/O control
    with DTIO V2 or OpenMCU firmware

    General I/O Interface
    Ethernet Port 6x Gigabit Ethernet ports by
    Intel® I219 and 5x I210
    PoE+ IEEE 802.3at PoE+ PSE on GigE Port
    3 ~ Port 6, 80 W total power budget
    USB 3.0 4x USB 3.0 ports via native XHCI
    controller, 1000 MB/s total
    bandwidth
    USB 2.0 4x USB 2.0 ports
    Video Port 1x stacked VGA + DVI-D connector
    2x DisplayPort connectors, supporting 4K2K
    resolution
    Serial Port 2x software-programmable
    RS-232/422/485 port
    (COM1 & COM2)
    1x RS-232 port (COM3)
    Audio 1x Mic-in and 1x Speaker-out

    Storage Interface
    SATA HDD 2x Internal SATA port for 2.5” HDD/SSD
    installation, supporting RAID 0/1
    mSATA 1x full-size mSATA port (mux with mini-PCIe)

    Expansion Bus
    PCI/PCI Express 1x PCIe x16 slot @ Gen3, 8-lanes
    PCIe signals in Cassette, supporting
    – 75W NVIDIA® GeForce® GTX
    950/1050 GPU card
    – COTS CameraLink and CoaXPress camera
    interface card
    Mini PCI-E 1x internal mini PCI Express socket
    with front-accessible SIM socket
    1x internal mini PCI Express socket
    with internal SIM socket (mux with mSATA)

    Power Supply
    DC Input 1x 3-pin pluggable terminal block for 8~35VDC DC input
    Remote Ctrl. &
    Status Output    		 1x 10-pin (2×5) wafer connector for
    remote on/off control and status LED output
    Mechanical
    Dimension 240 mm (W) x 225 mm (D) x 111 mm (H)
    Weight 4.9 kg (incl. CPU, GPU, memory and HDD)
    Mounting Wall-mount by mounting bracket or
    optional rack-mount kit

    Environmental
    Operating Temperature with i7-6700TE, i5-6500TE (35W TDP)
    -25°C ~ 60°C **
    with i7-6700, i5-6500 (65W/51W TDP)
    -25°C ~ 60°C */
    ** (configured as 35W CPU mode)
    -25°C ~ 50°C */
    ** (configured as 65W CPU mode)
    Storage Temperature -40°C ~ 85°C
    Humidity 10%~90% , non-condensing
    Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
    (w/ SSD, according to IEC60068-2-64)
    Shock Operating, 50 Grms, Half-sine 11 ms Duration
    (w/ SSD, according to IEC60068-2-27)
    EMC CE/FCC Class A, according to EN 55022 & EN 55024
