Intel® 3rd-Gen Core™ i7/i5 Fanless Controller with Compact Size and Configurable CPU Power Mode

  • 212 mm x 165 mm x 62 mm very compact size
  • Intel® 3rd-Gen i7/i5 PGA-type processor
  • User-configurable CPU power mode for adaptation to various environments
  • Dual GbE ports and four USB 3.0 ports
  • DVI/VGA + DisplayPort triple independent display outputs
  • Built-in isolated digital I/O with change-of-state (COS) interrupt
  • 8~35V wide-range DC input

    Product Highlights

    PGA CPU Support with Configurable CPU Power Mode

    Nuvo-3120 supports PGA-type CPU to offer greater flexibility of CPU selection. PGA-type processors are with higher CPU power, and therefore introduce higher performance and more heat. To adapt Nuvo-3120 to various environments, we develop an unique function, configurable CPU power mode, to alter CPU power per user’s preference.

    By selecting maximal performance, reduced performance or extended temperature mode, you can get adequate performance/temperature preference according to deployment environment. You can refer to the table of CPU benchmark v.s. operating temperature in different CPU power modes. Compared to other embedded controllers using i7-3517UE CPU, Nuvo-3120 offers better flexibility and more computing power without sacrificing thermal reliability.

    Rich I/O Functions in Compact Chassis

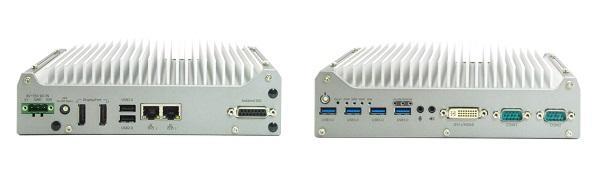

    Nuvo-3120 integrates all general I/O functions in its compact chassis. Not only Gigabit Ethernet, USB3/USB2, SATA and COM ports are included, Nuvo-3120 further supports triple independent display outputs via its DVI/VGA + DP connectors. Inside Nuvo-3120, there are three mini-PCIe/mSATA slots with two SIM sockets for WIFI, 3G/4G, GPS and storage expandability.


    System Core

    Processor Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache)
    Intel® Core™ i5-3610ME (2.7/3.3 GHz, 3 MB cache)
    Intel® Celeron™ 1020E (2.2 GHz, 2 MB cache)
    Chipset Intel® HM76 PCH(Nuvo-3120)
    Graphics Integrated Intel® HD Graphics 4000 Controller
    Memory 1x 204-pin SO-DIMM sockets,
    up to 8 GB DDR3 1333/1600 MHz SDRAM

    I/O Interface

    Ethernet 1x Gigabit Ethernet port by Intel® 82579LM 1x Gigabit Ethernet ports by Intel® i210
    Video Port 1x DVI-I connector for VGA/DVI output, supporting
    2048×1536 (VGA) or 1920×1080 (DVI) resolution
    2x DisplayPort, supporting 2560×1600 resolution
    Serial Port 2x software-programmable RS-232/422/485
    (COM1 & COM2)
    USB 4x USB 3.0 ports and 4x USB 2.0 ports
    Isolated DIO 4x isolated DI with COS interrupt and 4x isolated DO
    Audio 1x mic-in and speaker-out

    Storage Interface

    SATA HDD 1x Internal SATA port for 2.5” HDD/SSD
    mSATA 1x full-size mSATA (SATA/USB/W_DISABLE#) with USIM

    Expansion Bus

    Mini PCI-E 1x full-size mini PCI Express socket with USIM socket
    1x half-size mini PCI Express socket

    Power Supply & Ignition Control

    DC Input 8~35V DC input via 3-pin pluggable terminal block
    Ignition Control Ignition control with user-selectable on/off delay


    Dimension 210 mm (W) x 165 mm (D) x 62 mm (H)
    Weight 2.7 Kg (including one 2.5” HDD and DDR3 SODIMM)
    Mounting Wall-mounting (Standard) or DIN-Rail mounting (Optional)

    Operating Temperature

    100% CPU loading
    -25°C ~ 50°C**(Max performance)
    -25°C ~ 60°C**(Reduced performance)
    -25°C ~ 70°C**(Extended performance)
    100% CPU loading*
    -25°C ~ 60°C**(Max performance)
    -25°C ~ 70°C**(Reduced performance)
    -25°C ~ 70°C**(Extended performance)
    w/Celeron 1020E
    100% CPU loading*
    -25°C ~ 70°C**


    Storage Temperature -40°C ~ 85°C
    Humidity 10%~90% , non-condensing
    Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD,
    according to IEC60068-2-64)
    Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/
    SSD, according to IEC60068-2-27)
    Certification CE/FCC Class A, according to EN 55022 & EN 55024
