Intel® 3rd-Gen Core™ i7/i5 Fanless Surveillance System with 16x/8x 802.3at PoE+ ports and 4x HDD RAID
- Intel® 3rd-Gen i7 Quad-core superb performance
- Up to 16x IEEE 802.3at (25.5W) PoE+ ports
- Rugged, -25 °C to 60 °C fanless operation
- Four 2.5” SATA HDDs with RAID 0/1/5/10 support
- Patented easy-swap trays for HDD replacement
- 8~35V wide-range DC input with built-in ignition power control
- Per-port power on/off control for each PoE+ port
Product Highlights
16x 802.3at PoE+ Ports
Connecting cameras for video capture is the fundamental of a surveillance system. Nuvo-3616VR features 16x 802.3at PoE+ ports for connecting IP cameras. Each port can supply 25.5W power, capable of powering a high-watt PTZ (Pan-Tilt-Zoom) camera. As electrical power is passed along with data on a single CAT5/6 cable, Nuvo-3616VR significantly reduces the cost of deployment for a surveillance system supporting up to 16 cameras.
Built-in 4-Drives RAID

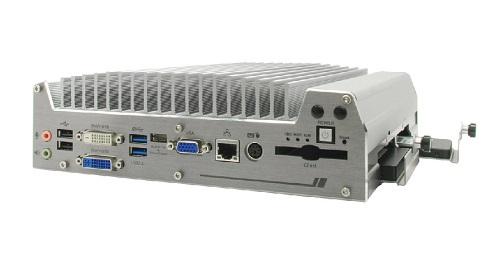

Storing video streams from 16x cameras requires a reliable storage with high throughput and high capacity. Thus Nuvo-3616VR incorporates a 4-drives RAID 0/1/5/10 storage system to offer up to 1GB/s disk access and 8TB capacity. Moreover, two of four drives are installed with easy-swap HDD trays so you can replace the HDD/SSD in just few seconds.
8~35V DC-in and Ignition Control
Nuvo-3616VR is designed for both stationary and mobile surveillance applications. Some notable features, such as 8~35V wide-range input, ignition control, input surge protection and damping bracket, are integrated into Nuvo-3616VR to make it feasible not only for fixed deployment but also for in-vehicle usage.
Quad-core i7 CPU for Video Analytics
Video analytics is an emerging requirement for modern surveillance systems to facilitate real-time analyzing/ alarming. In addition to PoE+ and RAID, Nuvo-3616VR equips Intel® 3rd-Gen i7 quad-core processor to offer extraordinary computing power for performing complicated video analytics algorithms (e.g. face detection). This makes Nuvo-3616VR a versatile surveillance system combining video capture/streaming and advanced video analytics.
Application
1. Mobile Surveillance System
2. Stationary Surveillance System
Specification
System Core |
|
|---|---|
| Processor | Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache) Intel® Core™ i5-3610ME (2.7/3.3 GHz, 3 MB cache) |
| Chipset | Intel® QM77 Platform Controller Hub with AMT & RAID support |
| Graphics | Integrated Intel® HD Graphics 4000 Controller |
| Memory | 2x 204-pin SO-DIMM sockets, up to 16 GB DDR3 1333/1600 MHz SDRAM |
I/O Interface |
|
|---|---|
| Ethernet | 1x Gigabit Ethernet port by Intel® 82579LM |
| POE (Nuvo-3616VR) |
16x IEEE 802.3at (25.5W) PoE+ Ports with per-port power on/off control 160W total power budget |
| POE (Nuvo-3608VR) |
8x IEEE 802.3at (25.5W) PoE+ Ports with per-port power on/off control 80W total power budget |
| Video Port | 1x DB-15 connector for analog RGB, supporting 2048×1536 resolution 2x DVI-D connectors for DVI/HDMI outputs, supporting 1920×1080 resolution (Supporting dual independent display outputs) |
| USB | 2x USB 3.0 ports and 2x USB 2.0 ports |
| Serial Port | 2x software-programmable RS-232/422/485 (COM1 & COM2) |
| KB/MS | 1x 6-pin mini-DIN connector for PS/2 keyboard/mouse |
| Audio | 1x mic-in and speaker-out |
Storage Interface |
|
|---|---|
| SATA HDD | 4x Internal SATA port for 2.5” HDD/SSD installation with RAID 0/1/5/10 |
| CFast | 1x CFast socket |
Expansion Bus |
|
|---|---|
| Mini PCI-E | 1x internal mini PCI Express socket with USIM socket 1x internal mini PCI Express socket |
Power Supply & Ignition Control |
|
|---|---|

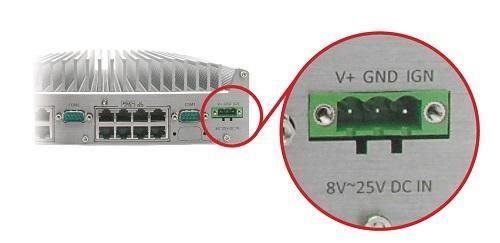

| DC Input | 1x 3-pin pluggable terminal block for 8~35V DC input (for direct DC wiring) |
| Ignition Control | Ignition control with user-selectable on/off delay (V+/GND/IGN) |
| Remote Ctrl. & Status Output |
1x 10-pin (2×5) wafer connector for remote on/off control and status LED output |
Mechanical |
|
|---|---|
| Dimension | 240 mm (W) x 255 mm (D) x 70 mm (H) |
| Weight | 5.0 Kg |
| Mounting | Wall-mounting (Standard) |
Environmental |
|
|---|---|
| Operating Temperature | -25°C ~ 60°C */** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| EMC | CE/FCC Class A, according to EN 55022 & EN 55024 |
